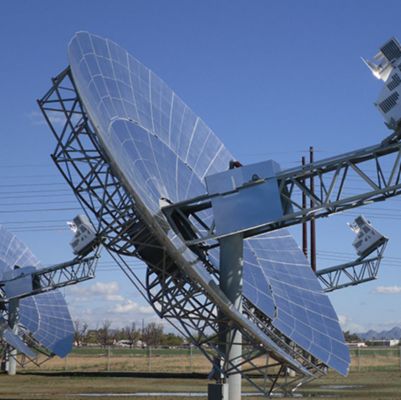

Manufacturer Direct Sales Of Aluminum Honeycomb Solar Panels
1. Descriptions:

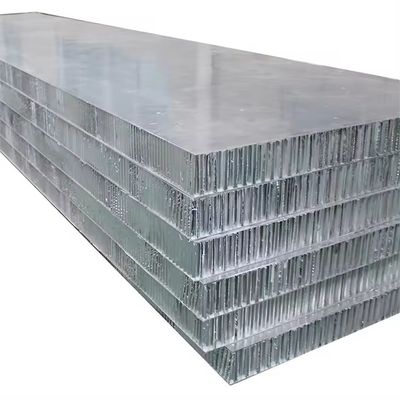

Aluminum honeycomb panels are increasingly used in solar panel applications due to their lightweight, high strength, and excellent structural properties. Here’s how they are typically applied:
1. Structural Backing for Solar Panels
- Aluminum honeycomb panels serve as a rigid yet lightweight backing material for photovoltaic (PV) modules.
- The honeycomb core reduces weight while maintaining stiffness, making solar panels easier to install and transport.
2. Enhanced Durability & Stability
- The sandwich structure (aluminum skins + honeycomb core) provides high torsional and flexural rigidity, preventing warping or deformation under wind, snow, or thermal stress.
- This improves the long-term reliability of solar panels in harsh environments.
3. Thermal Management
- The honeycomb structure allows for efficient heat dissipation, preventing overheating of solar cells and improving energy efficiency.
- Some designs integrate cooling channels within the honeycomb core for active thermal regulation.
4. Lightweight & Easy Installation
- Compared to traditional glass or metal backing, aluminum honeycomb panels significantly reduce weight without sacrificing strength, enabling easier rooftop or large-scale solar farm installations.
5. Customizable Designs
- The panels can be tailored in thickness, cell size, and surface coatings to optimize performance for specific solar applications (e.g., building-integrated photovoltaics, portable solar systems).
6. Corrosion Resistance
- Aluminum’s natural corrosion resistance makes it ideal for outdoor solar applications, especially in coastal or high-humidity regions.
By integrating aluminum honeycomb panels, solar systems achieve better efficiency, longevity, and cost-effectiveness while maintaining structural integrity.
2. Specifications:
| Aluminum honeycomb panel |
| Panel total thickness |
5mm-50mm or Customized |
| Width |
1220mm,1500mm or Customized |
| Length |
2440mm or Customized |
| Surface finish |
PE/PVDF/Anodic oxidation |
| Color |
White, Sparkling Silver, WoodenGrain, Mirror, Brushed or other color as
requested
|
| Applications |
Decorative material for buildings, home ,office, sign board, etc |
| Specification of honeycomb core |
| Side length(mm) |
0.6, 0.8, 1, 1.83, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 50 |
| Foil thickness(mm) |
0.015, 0.021, 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.1, 0.15, 0.2 |
| Alloy |
Al3003 |
| Supply form |
Unexpanded(block, strip) or expanded(slice); Unperforated or perforated; Slotted or unslotted |
| Technical Data Sheet |
|
Specification
|
Side length
(mm)
|
Density
(kg/m³)
|
Compression
strength (MPa)
|
L-Shear
strength (MPa)
|
W-Shear
strength (MPa)
|
| BHC3003-5-0.03 |
5 |
27 |
0.53 |
0.44 |
0.24 |
| BHC3003-5-0.04 |
5 |
31 |
0.66 |
0.53 |
0.3 |
| BHC3003-4-0.03 |
4 |
33 |
0.73 |
0.58 |
0.33 |
| BHC3003-4-0.04 |
4 |
39 |
0.98 |
0.75 |
0.43 |
| BHC3003-5-0.05 |
5 |
41 |
1.07 |
0.8 |
0.47 |
| BHC3003-3-0.03 |
3 |
44 |
1.18 |
0.89 |
0.52 |
| BHC3003-5-0.06 |
5 |
49 |
1.43 |
1.03 |
0.60 |
| BHC3003-3-0.04 |
3 |
52 |
1.6 |
1.15 |
0.67 |
| BHC3003-4-0.05 |
4 |
53 |
1.65 |
1.18 |
0.69 |
| BHC3003-4-0.06 |
4 |
61 |
2.07 |
1.48 |
0.86 |
| BHC3003-2-0.03 |
2 |
66 |
2.39 |
1.7 |
1.00 |
| BHC3003-5-0.08 |
5 |
67 |
2.45 |
1.74 |
1.02 |
| BHC3003-3-0.05 |
3 |
68 |
2.50 |
1.78 |
1.04 |
| BHC3003-2-0.04 |
2 |
77 |
3.10 |
2.18 |
1.25 |
|
BHC3003-Beecore Aluminum Honeycomb Core, 3003 Series
|
3. Applications:
• Gas piping, cables, building materials, etc
• Curtain wall decoration for buildings where security is important, such as airport, hospital and research center
• Curtain wallboards for outside walls of normal buildings
• Renovations for old buildings and movable houses
• Decoration for indoor wall, ceiling, bathroom, kitchen and balcony
• Facades
• Billboards, exhibition desks and notice boards
• Wallboards and ceilings for tunnels
• Materials for industrial application, car and ship bodies
4. Aluminum honeycomb panel has several advantages:
• Excellent fireproof property
• Super peeling strength
• Perfect cold resistance performance
• Excellent surface flatness and smoothness
• Superior weather, corrosion, pollutant resistance
• Even coating, various colors
• Superior impact resistance
• Lightweight and easy to process
• Easy to maintain
5. Aluminum honeycomb panel of more pictures:
6. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, was founded in 2009. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
7. Factory show
8. FAQ
Q1. What is aluminum honeycomb panel usd for?
A: Aluminum honeycomb panel which has excellent rigidity and is one of the best metal wall materials. It has been widely used in the decoration of modern architecture, trains, automobiles, shipbuilding, building materials industry, furniture industry and so on.
Q2. What are the advantages of aluminum honeycomb panel?
A: Aluminum honeycomb panel has the advantages of light weight-high strength, environmental protection and no pollution, excellent surface flatness and smoothness, superior weather, corrosion, pollutant resistance, even coating, various colors.
.
Q3. What is the packaging method of aluminum honeycomb panel?
A: Aluminum honeycomb panel of samples are packed in cardboard and bulk orders are packed in plywood cases.
