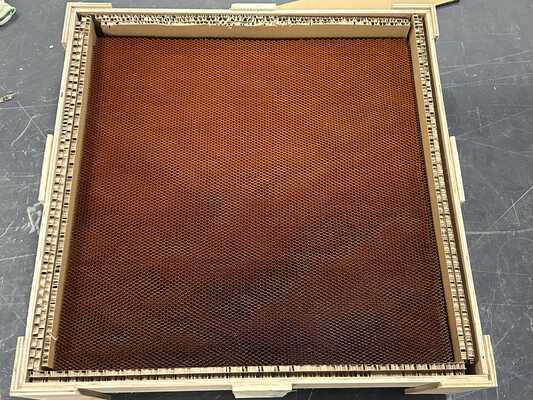

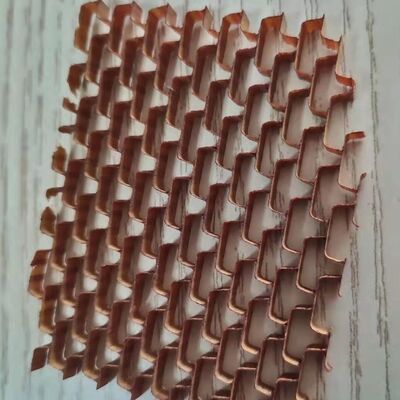

Density 56 Flexible Aramid Honeycomb Core With Plum Blossom Cell Size For Aviation
Flexible aramid honeycomb core is a core material featuring a plum blossom structure, extensively utilized in aerospace and industrial applications. Phenolic resin serves as a reinforcing material in the production of aramid honeycomb cores. As mechanical properties continue to advance, these products meet increasingly stringent requirements for aerospace and industrial applications.
Product Specifications
Commercial Grade Flexible Aramid Honeycomb Core
| Specifications |
Cell Size (mm/inch) |
Density (kg/m³) |
Compression Strength (MPa) |
L-Shear Strength (MPa) |
W-Shear Strength (MPa) |
| BHC1313-3.2-48 | 3.2 / 1/8 | 48 | 1.9 | 1.16 | 0.62 |
| BHC1313-3.2-64 | 3.2 | 64 | 3.1 | 1.48 | 0.82 |
| BHC1313-3.2-80 | 3.2 | 80 | 4.7 | 1.95 | 1.05 |
| BHC1313-3.2-96 | 3.2 | 96 | 6.6 | 2.45 | 1.42 |
| BHC1313-4.8-32 | 4.8 / 3/16 | 32 | 0.9 | 0.58 | 0.36 |
| BHC1313-4.8-48 | 4.8 | 48 | 2.6 | 0.98 | 0.56 |
| BHC1313-4.8-64 | 4.8 | 64 | 3.4 | 1.7 | 0.92 |
| BHC1313-4.8-80 | 4.8 | 80 | 6 | 1.95 | 1.1 |
| BHC1313-4.8-96 | 4.8 | 96 | 7.3 | 2.26 | 1.32 |
| BHC1313-6.4-24 | 6.4 / 1/4 | 24 | 0.54 | 0.34 | 0.18 |
| BHC1313-6.4-32 | 6.4 | 32 | 0.8 | 0.54 | 0.3 |
| BHC1313-6.4-48 | 6.4 | 48 | 2.05 | 1 | 0.56 |
| BHC1313-6.4-64 | 6.4 | 64 | 3.4 | 1.54 | 0.79 |
| BHC1313-9.5-24 | 9.5 / 3/8 | 24 | 0.52 | 0.32 | 0.16 |
| BHC1313-9.5-32 | 9.5 | 32 | 0.68 | 0.56 | 0.29 |
| BHC1313-9.5-48 | 9.5 | 48 | 9.6 | 1.15 | 0.66 |
Aerospace Grade Aramid Honeycomb Core
| Specifications |
Cell Size (mm/inch) |
Density (kg/m³) |
Compression Strength (MPa) |
L-Shear Strength (MPa) |
W-Shear Strength (MPa) |
| BHC1313A-3.2-48 | 3.2 / 1/8 | 48 | 2 | 1.26 | 0.72 |
| BHC1313A-3.2-64 | 3.2 | 64 | 3.2 | 1.58 | 0.92 |
| BHC1313A-3.2-80 | 3.2 | 80 | 4.8 | 2.05 | 1.15 |
| BHC1313A-3.2-96 | 3.2 | 96 | 6.7 | 2.55 | 1.52 |
| BHC1313A-3.2-128 | 3.2 | 128 | 11.4 | 3.05 | 1.88 |
| BHC1313A-3.2-144 | 3.2 | 144 | 13.3 | 3.15 | 2 |
| BHC1313A-4.8-32 | 4.8 / 3/16 | 32 | 1 | 0.68 | 0.46 |
| BHC1313A-4.8-48 | 4.8 | 48 | 2.7 | 1.08 | 0.66 |
| BHC1313A-6.4-48 | 6.4 / 1/4 | 48 | 2.15 | 1.1 | 0.66 |
| BHC1313A-9.5-48 | 9.5 / 3/8 | 48 | 9.7 | 1.25 | 0.76 |
Key Advantages
- Super light weight with high strength and anti-fatigue properties
- Outstanding corrosion resistance and flame resistance
- Excellent environmental adaptability and electrical insulation
- Good dielectric properties and high stability
Applications
Rail Transit, Aerospace, Radome, Yacht, Sports products, Automobile and more
Product Gallery
Company Profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since its establishment, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to finished products using honeycomb panel solutions such as truck bodies, laser TV/projection screens, and more.
Exhibition Show
Frequently Asked Questions
What is Flexible aramid honeycomb core used for?
Flexible Aramid honeycomb core is one of the best EMI materials. It can be divided into industrial use and aviation use. Aramid honeycomb core has been widely used in Rail Transit, Aerospace, Radome, Yacht, Sports products, Automobile and more.
What are the advantages of flexible aramid honeycomb core?
Aramid honeycomb core has the advantages of super light weight with high strength anti-fatigue, outstanding corrosion resistance and flame resistance, excellent environmental adaptability and electrical insulation, good dielectric properties and high stability.
What is the packaging method of flexible aramid honeycomb core?
Aramid honeycomb core small samples are packed in cardboard and bulk orders are packed in plywood cases.
